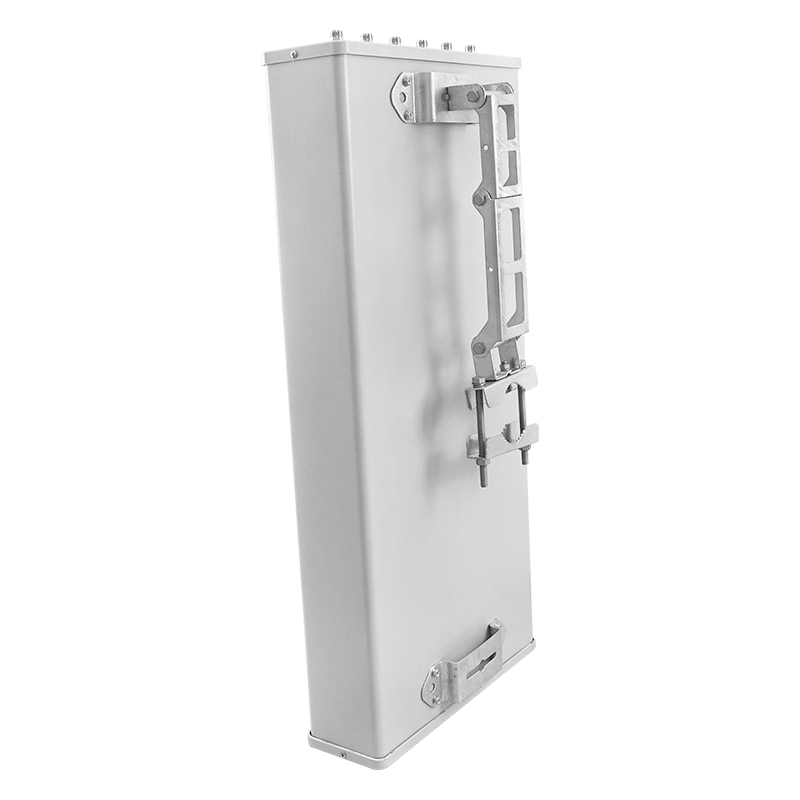

Wideband Outdoor Panel Antenna (700–2700 MHz) with N Male Connector

This 700–2700 MHz outdoor directional panel antenna is designed to enhance wireless signal performance across a wide range of communication bands. Covering frequencies from 700 MHz to 2700 MHz ( The antenna can also be customized to support and enhance the specific signal frequencies required for your application ), it is ideal for use with signal boosters, repeaters, and other RF communication systems, helping improve signal strength and stability in outdoor environments.

The antenna features a standard N-type male connector, ensuring reliable RF connectivity and easy integration with most signal amplification devices. Its plug-and-play compatibility allows quick installation without complicated configuration.

Engineered for long-term outdoor deployment, the antenna housing is made from durable weather-resistant materials that can withstand rain, wind, sunlight, and extreme temperatures. This robust construction ensures consistent performance and dependable signal transmission even in harsh environmental conditions.

With its directional panel design, the antenna focuses signal energy toward a specific area, helping to increase signal gain, reduce interference, and improve coverage quality. The compact structure also saves installation space while maintaining high transmission efficiency.

Thanks to its wide frequency coverage, rugged outdoor design, and stable RF performance, this antenna is an excellent choice for cellular signal booster systems, wireless communication infrastructure, and professional RF installations.

Technical Specifications:

Frequency Range 700–2700 MHz (custom frequency options available)

Recommended Coverage Distance Approx. 1–30 km depending on terrain and installation conditions

Bandwidth 160 / 790 MHz

Antenna Gain 15 dBi

Front-to-Back Ratio ≥ 25 dB

VSWR ≤ 1.7

Polarization Vertical

Maximum Input Power 100 W

Nominal Impedance 50 Ω

RF Connector N-Type Female

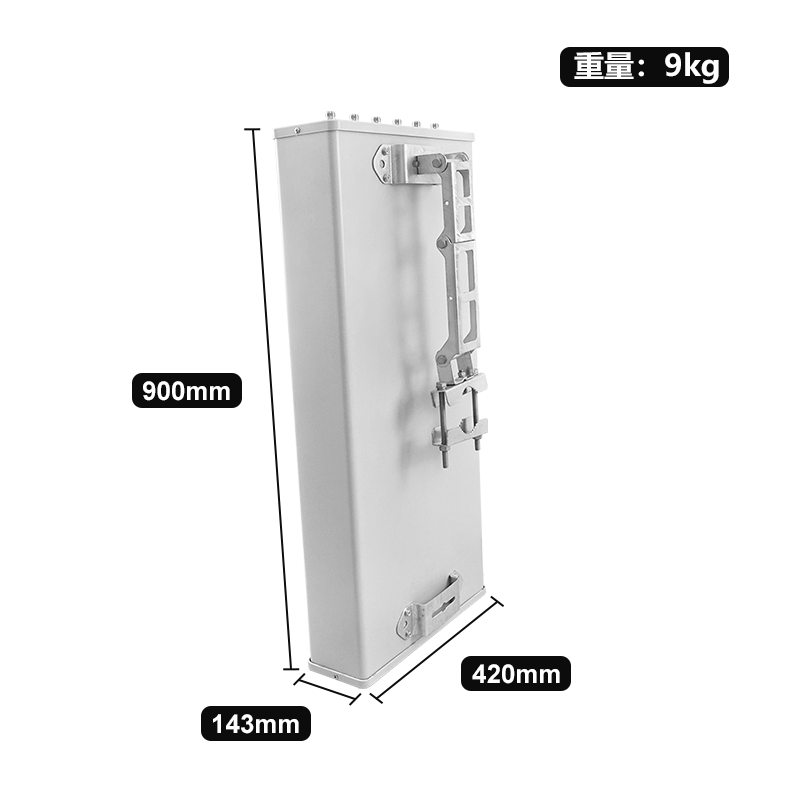

Antenna Dimensions 900 × 420 × 143 mm

Weight 9 kg

Rated Wind Resistance Up to 60 m/s

Vertical Beamwidth 15° / 9°

Important Notice:

This product is an external signal booster antenna only and does not amplify signals by itself. It must be connected to a signal booster or amplifier unit in order to function properly.

The antenna is equipped with a standard N-type connector. If your signal booster does not support an N-type port, you can simply use a compatible RF adapter to connect the antenna.
