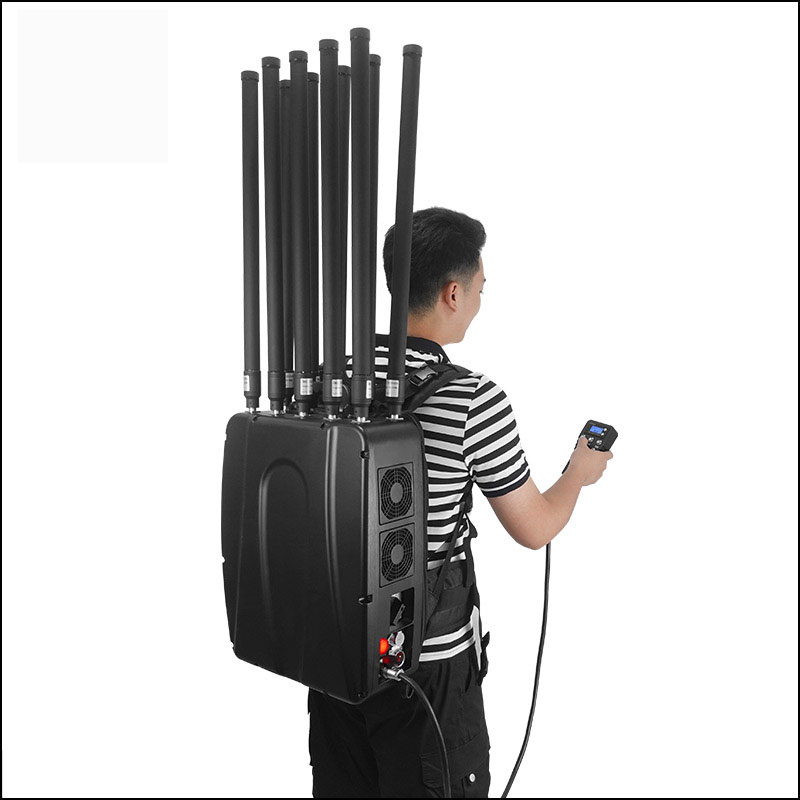

CKJ-D10 400W Backpack Drone Jammer – GPS, FPV & Long-Range LORA UAV Blocker

The CKJ-D10 Drone radio Jammer Backpack is designed for professionals who need mobility, speed, and high-impact drone neutralization. Fixed drone countermeasures can secure only one location at a time, but the CKJ-D10 allows operators to move freely across urban perimeters, outdoor events, and sensitive installations without setup delays.

With over 400W of RF output, this backpack system disrupts navigation and communication channels used by civilian UAVs, FPV drones, aerial survey drones, and long-range LORA-controlled aircraft. Its compact and ergonomic design ensures operators remain agile while maintaining full operational power.

Advanced Multi-Band Architecture

Unlike conventional single-band jammers, the CKJ-D10 employs 10 independent RF modules. Each frequency operates separately to maintain stable output across all channels, preventing performance drops common in other multi-band jammers.

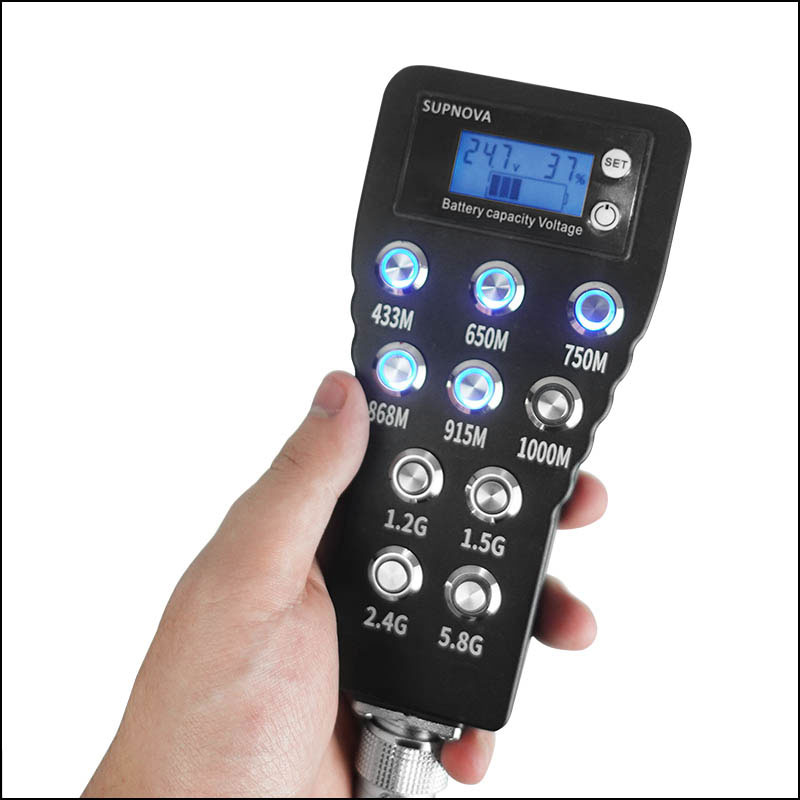

Supported frequency bands:

433 MHz, 650 MHz, 750 MHz, 868 MHz, 915 MHz, 1000 MHz
1.2 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz

This broad coverage disrupts:

• Radio links between drone and controller
• Telemetry and video downlinks
• Satellite navigation signals (GPS / GLONASS / BeiDou)

Frequency selection can be customized for specific operational requirements, ensuring maximum effectiveness for every deployment.

LORA Interference for Long-Range UAVs

Long-range FPV drones increasingly rely on LORA digital protocols to maintain stable connections over kilometers. Most traditional anti-drone jammers ignore this protocol.

The CKJ-D10 integrates a dedicated LORA interference module, allowing reliable disruption of:

• Long-range FPV drones
• DIY UAV platforms
• Telemetry-based and autonomous UAV systems
• Low-power long-range drones

This makes the CKJ-D10 significantly more versatile and future-proof compared to standard GPS/WiFi-only jammers.

360° Omnidirectional Coverage & Directional Mode

High-gain 16 dBi omnidirectional antennas create a full RF interference zone around the operator. No manual targeting is required.

For targeted scenarios, the directional panel antenna can extend jamming up to 2,000 meters, depending on environmental conditions, obstacles, and UAV signal strength. Typical omnidirectional range: 1,000–1,500 meters.

Portable Power & Thermal Management

The CKJ-D10 is powered by a removable DC24V lithium battery, providing 40–50 minutes of continuous operation. AC and vehicle DC charging options are included.

High-power RF generates significant heat. To maintain stable output during prolonged use, the system uses:

• Reinforced aluminum heatsinks
• Optimized internal airflow
• Intelligent ventilation

This ensures maximum performance during extended outdoor operations.

Specifications

RF Power: >400W

Frequency Channels: 10 independent bands

Omnidirectional Range: 1,000–1,500 m

Directional Range: Up to 2,000 m

Antennas: 16 dBi omnidirectional + directional panel

Battery: DC24V 30A lithium, 40–50 min runtime

Input Power: AC100–240V / DC24V

Operating Temperature: -20°C to 75°C

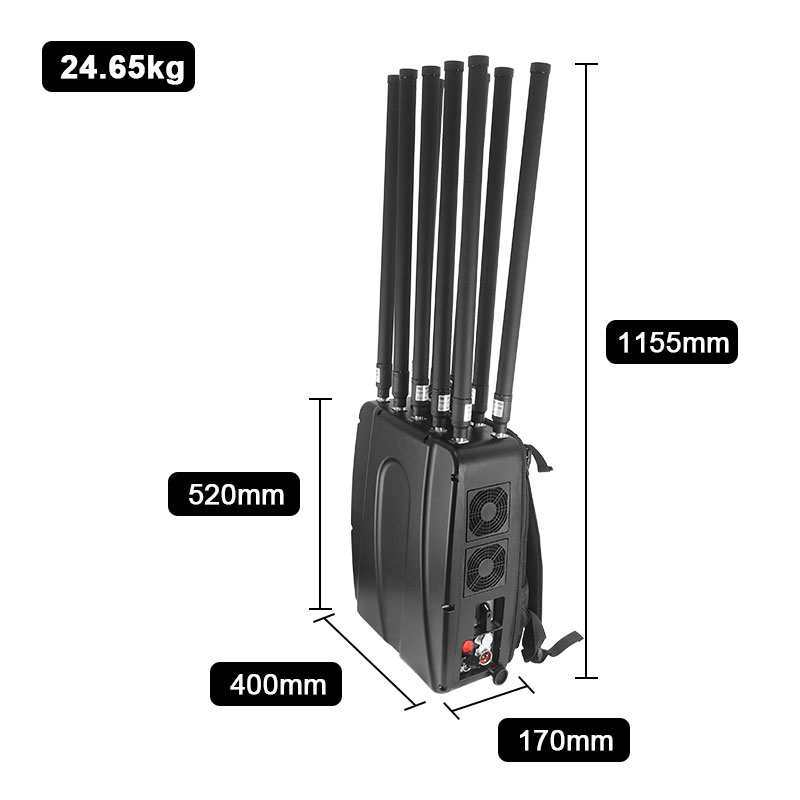

Dimensions: 52 × 40 × 17 cm

Weight: 24.65 kg

Package Contents

CKJ-D10 Drone Jammer Backpack

Removable lithium battery

High-power omnidirectional antennas

Directional panel antenna

AC wall charger

Vehicle DC charger
